XX - Road/Gravel
XX
Meet the XX, a single bike for road, gravel and cyclocross. Built for riders who expect performance without compromise, it delivers speed, precision and control across every surface.
From fast paced road rides in sublime comfort thanks to larger road tyres to gravel and cyclocross racing, the XX adapts with quiet confidence. Refined, responsive and versatile, it removes the need to choose between disciplines.
Built for everything
The XX blends road speed with gravel capability and cyclocross resilience.
Its geometry is tuned for precision, keeping handling sharp and composed on tarmac and rough terrain. Performance without boundaries.
Precision handling
A shorter wheelbase and chainstays create a direct, responsive ride. It reacts instantly, corners with confidence and accelerates with purpose.
Stable at speed, agile in tight sections.
Clearance to go further
Up to 45 mm tyre clearance unlocks true versatility and serious fun.
Run gravel tyres for demanding terrain, or modern oversized road tyres from 38 to 42 mm for added comfort, grip and speed on rough roads. One platform, multiple setups.
Clean by design
Minimal mounts and a stripped-back design create a clean, purposeful aesthetic.
Nothing unnecessary, nothing to distract from the ride.
FCTRY custom finishes
FCTRY paint options allow the XX to be tailored to your identity. Subtle or bold, each finish complements its performance-first design.
The one bike you need
The XX exists beyond categories.
Road speed, gravel capability and cyclocross durability in one refined machine.
| Forwards XX 12 Speed - Specification | |||||
|---|---|---|---|---|---|
| Component | Shimano GRX RX820 1x12-speed Close | Shimano GRX RX820 1x12-speed Wide | Shimano GRX RX820 2x12-speed | Shimano GRX RX825 Di2 1x12-speed Wide Wireless | Shimano GRX RX825 Di2 2x12-speed |
| Frame | 100% toray T700/T800 UD carbon fibre mix for balanced strength and weight saving using EPS molding process | 100% toray T700/T800 UD carbon fibre mix for balanced strength and weight saving using EPS molding process | 100% toray T700/T800 UD carbon fibre mix for balanced strength and weight saving using EPS molding process | 100% toray T700/T800 UD carbon fibre mix for balanced strength and weight saving using EPS molding process | 100% toray T700/T800 UD carbon fibre mix for balanced strength and weight saving using EPS molding process |
| Custom Paint Colour | Yes | Yes | Yes | Yes | Yes |
| Custom Graphics Colour | Yes | Yes | Yes | Yes | Yes |
| Forks | Carbon with rack mounts | Carbon with rack mounts | Carbon with rack mounts | Carbon with rack mounts | Carbon with rack mounts |
| Headset | Ahead 1.5” | Ahead 1.5” | Ahead 1.5” | Ahead 1.5” | Ahead 1.5” |
| Headset Spacers | UD Carbon | UD Carbon | UD Carbon | UD Carbon | UD Carbon |
| Steerer bung | Compressor | Compressor | Compressor | Compressor | Compressor |
| Bottom Bracket | Wheels Manufacturing | Wheels Manufacturing | Wheels Manufacturing | Wheels Manufacturing | Wheels Manufacturing |
| Lever & Calliper Assembly Left | ST-RX820/LA GRX | ST-RX820/LA GRX | ST-RX820 GRX 2-speed STI | ST-RX825 GRX | ST-RX825 GRX Di2 2-speed |
| Lever & Calliper Assembly Right | ST-RX820 GRX 12-speed STI | ST-RX820 GRX 12-speed STI | ST-RX820 GRX 12-speed STI | ST-RX825 GRX Di2 12-speed STI | ST-RX825 GRX Di2 12-speed STI |
| Sprint Shift | NA | NA | NA | NA | NA |
| Front Derailleur | NA | NA | FD-RX820 GRX 2-speed | NA | FD-RX825 GRX Di2 2-speed |
| Rear Derailleur | RD-RX820 GRX 12-speed | RD-RX822 GRX 12-speed | RD-RX820 GRX 12-speed | RD-RX827 GRX Di2 12-speed | RD-RX825 GRX Di2 12-speed |
| Chainset | FC-RX820 GRX | FC-RX820 GRX | FC-RX820 GRX | FC-RX820 GRX | FC-RX820 GRX |
| Chainring Options | 40 or 42T | 40 or 42T | 48/31T | 40 or 42T | 48/31T |
| Crank Length Options | 170/172.5/175mm | 170/172.5/175mm | 170/172.5/175mm | 170/172.5/175mm | 170/172.5/175mm |
| Cassette | CS-R8101 Ultegra 12-speed | CS-M8100 XT 12-speed | CS-R8101 Ultegra 12-speed | CS-M8100 XT 12-speed | CS-R8101 Ultegra 12-speed |
| Ratios | 11-34 or 11-36T | 10-45 or 10-51T | 11-34 or 11-36T | 10-45 or 10-51T | 11-34 or 11-36T |
| Chain | CN-M8100 XT/Ultegra with quick link, 12-speed | CN-M8100 XT/Ultegra with quick link, 12-speed | CN-M8100 XT/Ultegra with quick link, 12-speed | CN-M8100 XT/Ultegra with quick link, 12-speed | CN-M8100 XT/Ultegra with quick link, 12-speed |
| Di2 Battery | NA | NA | NA | BT-DN320 Di2 wireless rear derailleur | BT-DN300 Di2 internal mount |
| Cables | Shimano | Shimano | Shimano | Shimano | Shimano |
| Brake Callipers | BR-RX820 flat mount | BR-RX820 flat mount | BR-RX820 flat mount | BR-RX820 flat mount | BR-RX820 flat mount |
| Rotors | XTR/Dura Ace RT-CL900 | XTR/Dura Ace RT-CL900 | XTR/Dura Ace RT-CL900 | XTR/Dura Ace RT-CL900 | XTR/Dura Ace RT-CL900 |
| Rotor Sizes | 160mm | 160mm | 160mm | 160mm | 160mm |
| Handlebars | Pro Discover | Pro Discover | Pro Discover | Pro Discover | Pro Discover |
| Handlebar Options | 12/20 degree 40/42/44cm | 12/20 degree 40/42/44cm | 12/20 degree 40/42/44cm | 12/20 degree 40/42/44cm | 12/20 degree 40/42/44cm |
| Stem | Pro Discover | Pro Discover | Pro Discover | Pro Discover | Pro Discover |
| Stem Options | 70/80/90/100/110mm | 70/80/90/100/110mm | 70/80/90/100/110mm | 70/80/90/100/110mm | 70/80/90/100/110mm |
| Seatpost | Carbon 180g 27.2mm | Carbon 180g 27.2mm | Carbon 180g 27.2mm | Carbon 180g 27.2mm | Carbon 180g 27.2mm |
| Seatpost Options | 0/20mm | 0/20mm | 0/20mm | 0/20mm | 0/20mm |

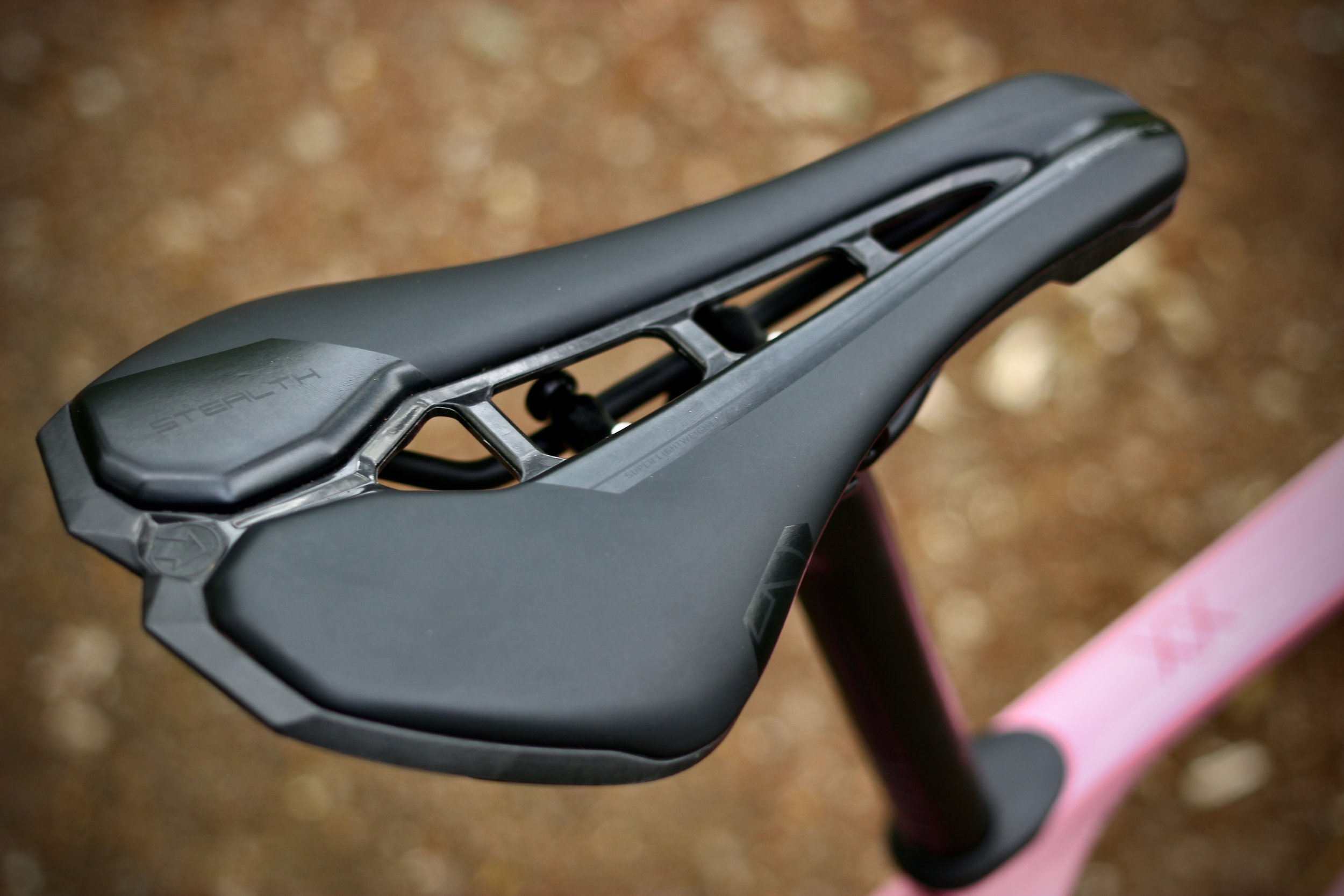

| Saddle | Pro Stealth Performance | Pro Stealth Performance | Pro Stealth Performance | Pro Stealth Performance | Pro Stealth Performance |
| Saddle Sizes | 142/152mm | 142/152mm | 142/152mm | 142/152mm | 142/152mm |
| Wheels | Hunt 4 Season Gravel Alloy 2025 | Hunt 4 Season Gravel Alloy 2025 | Hunt 4 Season Gravel Alloy 2025 | Hunt 4 Season Gravel Alloy 2025 | Hunt 4 Season Gravel Alloy 2025 |
| Wheel Options | Yes | Yes | Yes | Yes | Yes |
| Sealant | Orange Seal 100ml x2 | Orange Seal 100ml x2 | Orange Seal 100ml x2 | Orange Seal 100ml x2 | Orange Seal 100ml x2 |
| Tyre | Vittoria Terreno T10 - T80 | Vittoria Terreno T10 - T80 | Vittoria Terreno T10 - T80 | Vittoria Terreno T10 - T80 | Vittoria Terreno T10 - T80 |
| Tyre Options | Yes, model, colour and size | Yes, model, colour and size | Yes, model, colour and size | Yes, model, colour and size | Yes, model, colour and size |
| Axle Front | 12 x 120 x 1.5 | 12 x 120 x 1.5 | 12 x 120 x 1.5 | 12 x 120 x 1.5 | 12 x 120 x 1.5 |
| Axle Rear | 12 x 171 x 1.5 | 12 x 171 x 1.5 | 12 x 171 x 1.5 | 12 x 171 x 1.5 | 12 x 171 x 1.5 |
| Bartape | BBB BHT-16 - Gravel Ribbon 3.5mm or BBB BHT-14 2.0mm | BBB BHT-16 - Gravel Ribbon 3.5mm or BBB BHT-14 2.0mm | BBB BHT-16 - Gravel Ribbon 3.5mm or BBB BHT-14 2.0mm | BBB BHT-16 - Gravel Ribbon 3.5mm or BBB BHT-14 2.0mm | BBB BHT-16 - Gravel Ribbon 3.5mm or BBB BHT-14 2.0mm |
| Hardware | SS Allen Bolts, Washers and Spring Washers | SS Allen Bolts, Washers and Spring Washers | SS Allen Bolts, Washers and Spring Washers | SS Allen Bolts, Washers and Spring Washers | SS Allen Bolts, Washers and Spring Washers |
| Anti Rattle | Capgo 1m | Capgo 1m | Capgo 1m | Capgo 1m | Capgo 1m |
