One Evo - Road
An evolution of One
The One Evo sits alongside the original One road bike as a refined evolution of the platform.
It builds on the same foundation, with advances in frame moulding and more resolved detailing throughout, offering an alternative expression of One, not a replacement.
Refined design

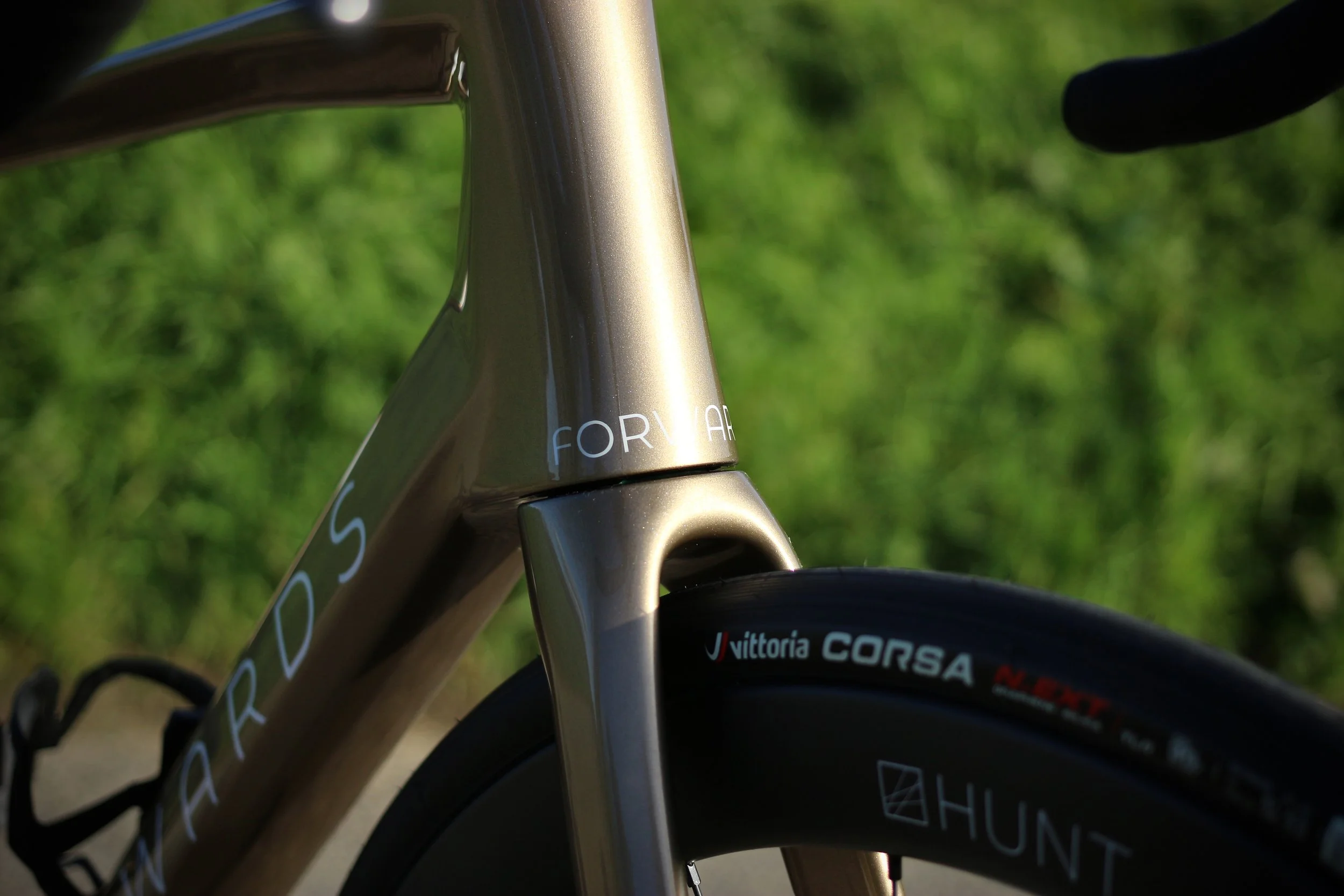

Every area of the frame has been revisited.
The frame itself is more technically detailed in its shape and form, bringing greater definition to each section while maintaining a cohesive overall design.
Carbon construction
One Evo uses a proven high performance carbon layup, balancing stiffness, weight, and comfort.
Refinements in moulding improve continuity through the frame, enhancing both structure and finish.
Built around you
Each One Evo is built to order.
From paint to components, every detail is specified by the rider. No stock builds or fixed configurations.
Performance
An ultimate endurance road bike, responsive and composed across varied road surfaces, with clearance for tyres up to 32mm.
Individually finished

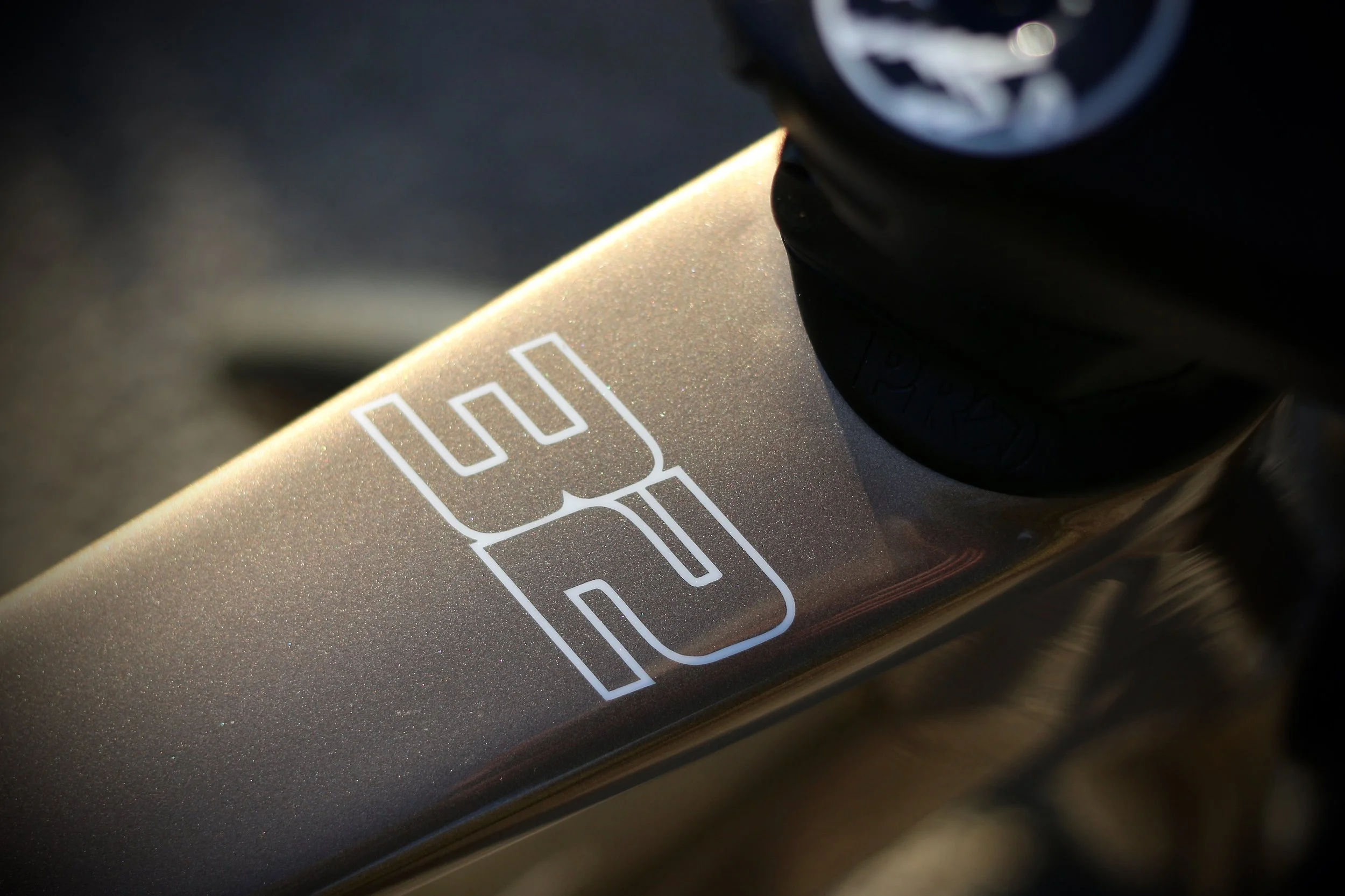

Every frame is hand finished in the UK and individually numbered.
No two bikes are the same.
| Forwards One Evo - Specification | |||
|---|---|---|---|
| Component | Shimano 105 2x12-speed Di2 | Shimano Ultegra 2x12-speed Di2 | Shimano Dura-Ace 2x12-speed Di2 |
| Frame | 100% toray T700/T800 UD carbon fibre mix for balanced strength and weight saving using EPS molding process | 100% toray T700/T800 UD carbon fibre mix for balanced strength and weight saving using EPS molding process | 100% toray T700/T800 UD carbon fibre mix for balanced strength and weight saving using EPS molding process |
| Carbon Option | Yes, Lightweight | Yes, Lightweight | Yes, Lightweight |
| Custom Paint Colour | Yes | Yes | Yes |
| Custom Graphics Colour | Yes | Yes | Yes |
| Forks | Carbon | Carbon | Carbon |
| Headset | Ahead 1.5” | Ahead 1.5” | Ahead 1.5” |
| Headset Spacers | UD carbon | UD carbon | UD carbon |
| Steerer bung | Compressor | Compressor | Compressor |
| Bottom Bracket | Praxis Works BSA 68 Threaded | Praxis Works BSA 68 Threaded | Praxis Works BSA 68 Threaded |
| Lever Left | ST-R7170 105 Di2 2-speed STI | ST-R8170 Ultegra Di2 2-speed STI | ST-R9270 Dura-Ace Di2 2-speed STI |
| Lever Right | ST-R7170 105 Di2 12-speed STI | ST-R8170 Ultegra Di2 12-speed STI | ST-R9270 Dura-Ace Di2 12-speed STI |
| Sprint Shift | NA | NA | NA |
| Front Derailleur | FD-R7150 105 Di2 12-speed | FD-R8150 Ultegra Di2 12-speed | FD-R9250 Dura-Ace Di2 12-speed |
| Rear Deraillieur | RD-R7150 105 Di2 12-speed | RD-R8150 Ultegra Di2 12-speed | RD-R9250 Dura-Ace Di2 12-speed |

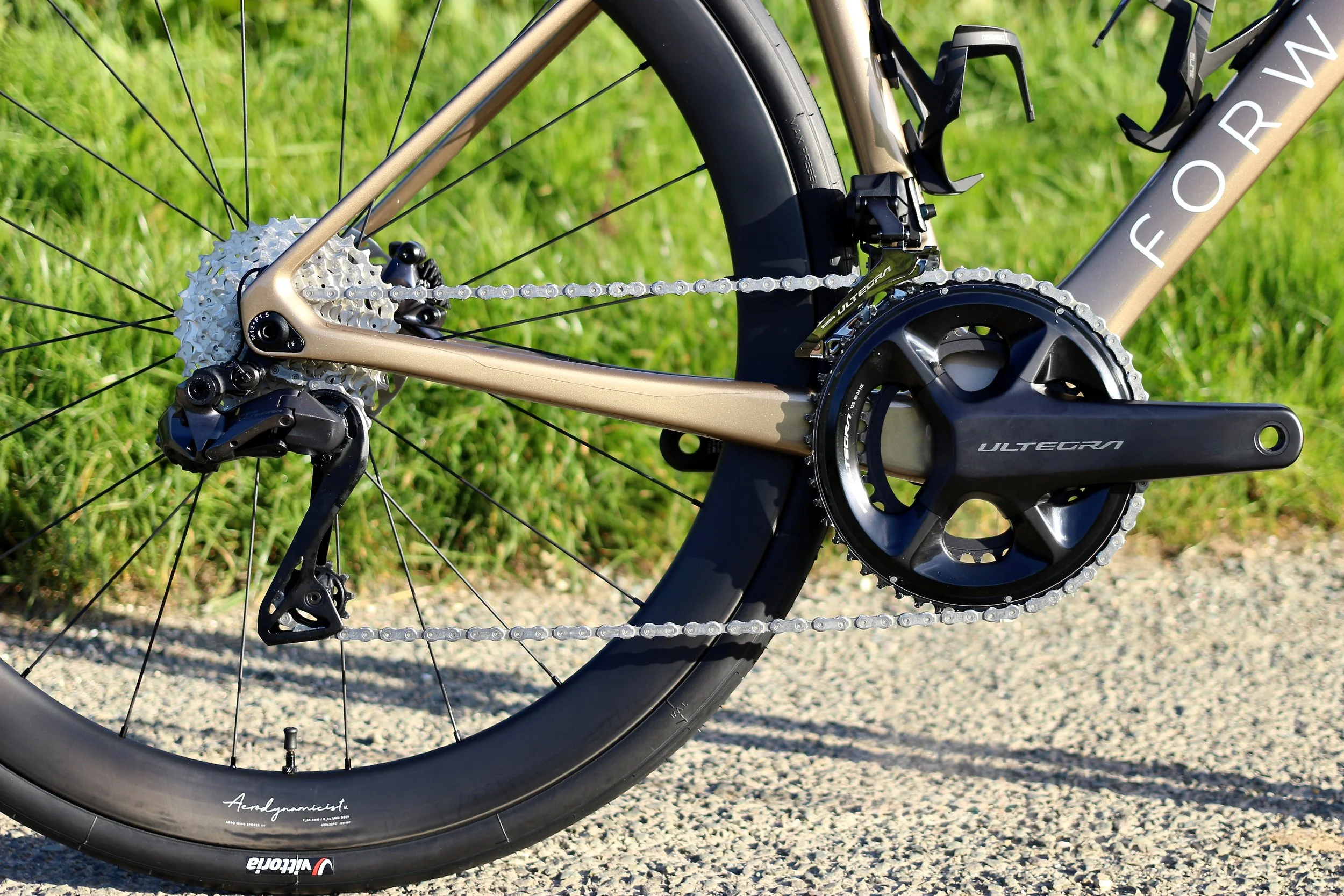

| Chainset | FC-R7100 105 12-speed double | FC-R8100 Ultegra 12-speed double | FC-R9200 Dura-Ace 12-speed double |
| Chainring Options | 50/34T, 52/36T | 50/34T, 52/36T | 50/34T, 52/36T, 54/40T |
| Crank Length Options | 160/165/170/172.5/175mm | 160/165/170/172.5/175mm | 165/170/172.5/175/177.5mm |
| Cassette | CS-R7100 105 12-speed | CS-R8100 Ultegra 12-speed | CS-R9200 Dura-Ace 12-speed |
| Ratios | 11-34 or 11-36T | 11-30 or 11-34T | 11-30 or 11-34T |
| Chain | CN-M7100 SLX/105 with quick link | CN-M8100 XT/Ultegra with quick link | CN-M9100 XTR/Dura Ace with quick link |
| Di2 Battery | BT-DN300 Di2 | BT-DN300 Di2 | BT-DN300 Di2 |
| Junction Box | NA | NA | NA |
| Cables | eTube | eTube | eTube |

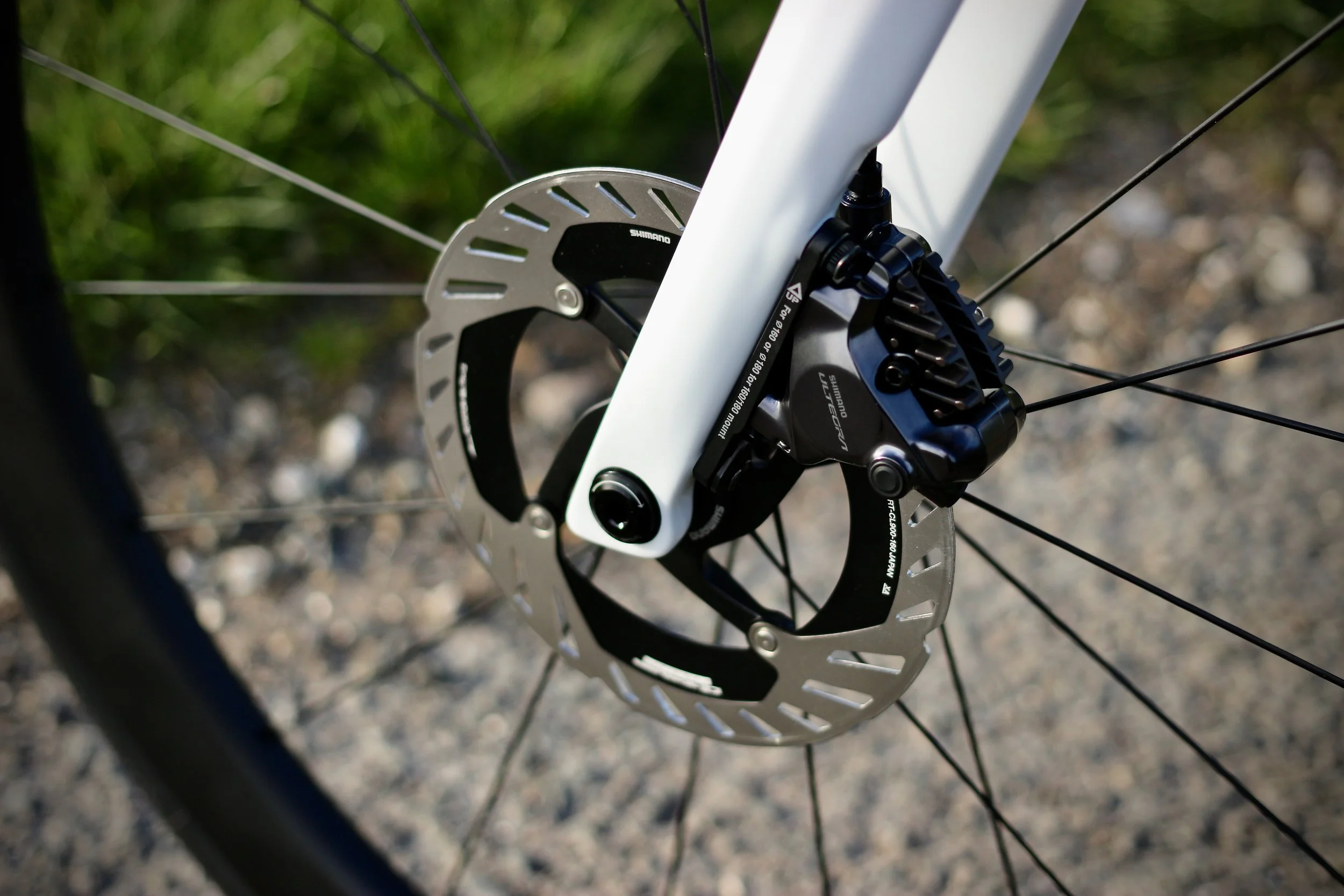

| Brake Callipers | BR-R7170 flat mount | BR-R8170 flat mount | BR-R9270 flat mount |
| Rotors | SM-RT70 | XTR/Dura Ace RT-MT900 | XTR/Dura Ace RT-MT900 |
| Rotor Sizes | 140/160mm | 140/160mm | 140/160mm |
| Handlebars | Pro PLT Alloy Compact | Pro Vibe Alloy Aero Compact or Pursuit | Pro Vibe Carbon Aero Compact |
| Handlebar Options | 36/38/40/42/44/46cm | 36/38/40/42cm | 37/39/41cm |
| Stem | Pro PLT Alloy | Pro Vibe Alloy | Pro Vibe Alloy Aero -17 |
| Stem Options | 50/60/70/80/90/100/110/120/130mm | 80/90/100/110/120/130mm | 80/90/100/110/120/130mm |
| Seatpost | Carbon 180g 27.2mm | Carbon 180g 27.2mm | Carbon 180g 27.2mm |
| Seatpost Options | 0/20mm | 0/20mm | 0/20mm |
| Saddle | Pro Stealth Performance | Pro Stealth Performance | Pro Stealth Performance |
| Saddle Sizes | 142/152mm | 142/152mm | 142/152mm |
| Saddle Options | Yes | Yes | Yes |

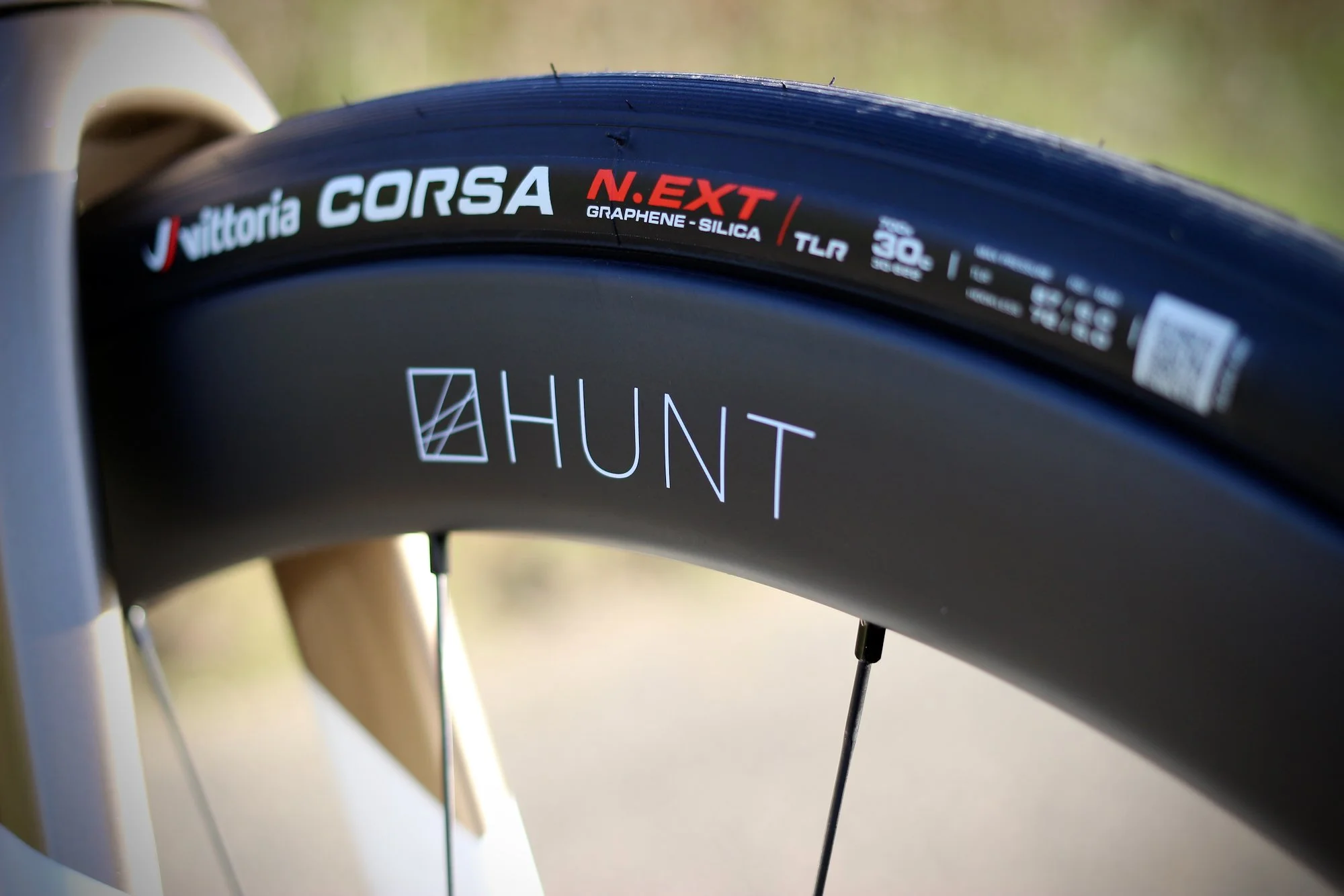

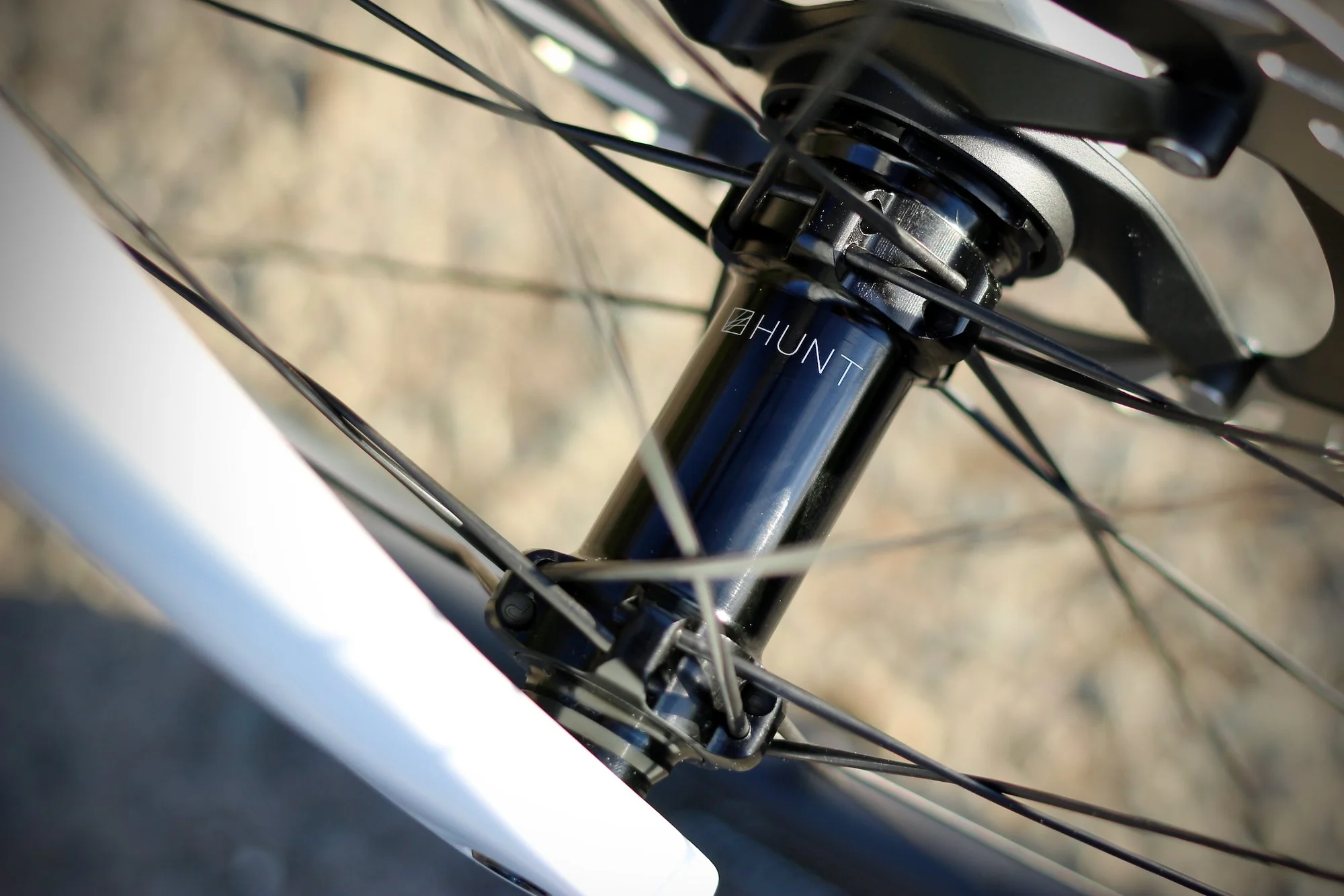

| Wheels | Hunt 4 Season Pro Disc Alloy | Hunt Carbon 44_46 Aerodynamicist | Hunt Carbon SUB50 Limitless |
| Wheel Options | Yes | Yes | Yes |
| Sealant | Orange Seal 100ml x2 | Orange Seal 100ml x2 | Orange Seal 100ml x2 |

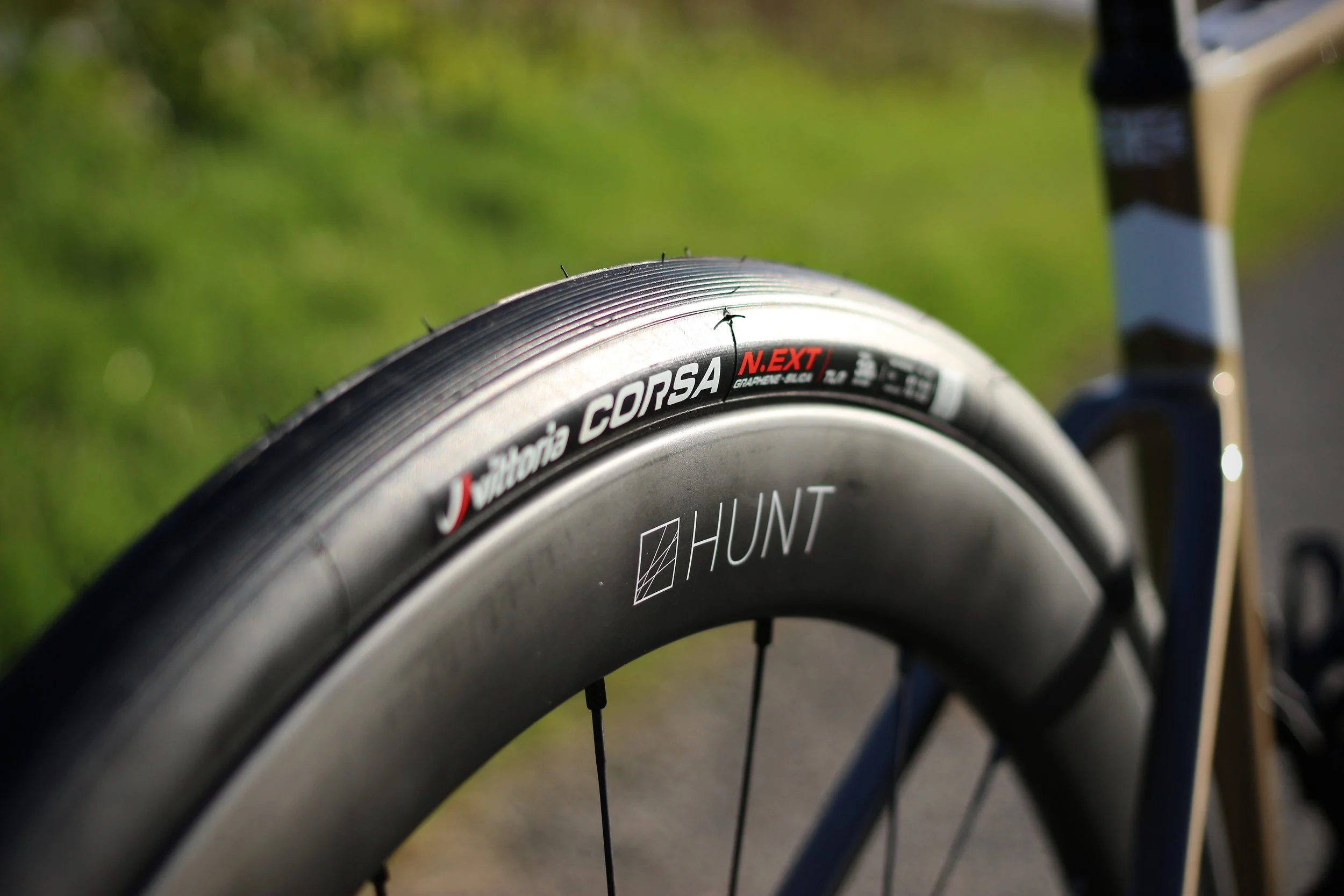

| Tyre | Vittoria Rubino V 700x32c Tubeless | Vittoria Corsa N.EXT 700x30c TLR Full Black G2.0 | Vittoria Corsa N.EXT 700x30c TLR Full Black G2.0 |
| Tyre Options | Yes | Yes | Yes |
| Axle Front | 12 x 120 x 1.5 | 12 x 120 x 1.5 | 12 x 120 x 1.5 |
| Axle Rear | 12 x 173 x 1.5 | 12 x 173 x 1.5 | 12 x 173 x 1.5 |

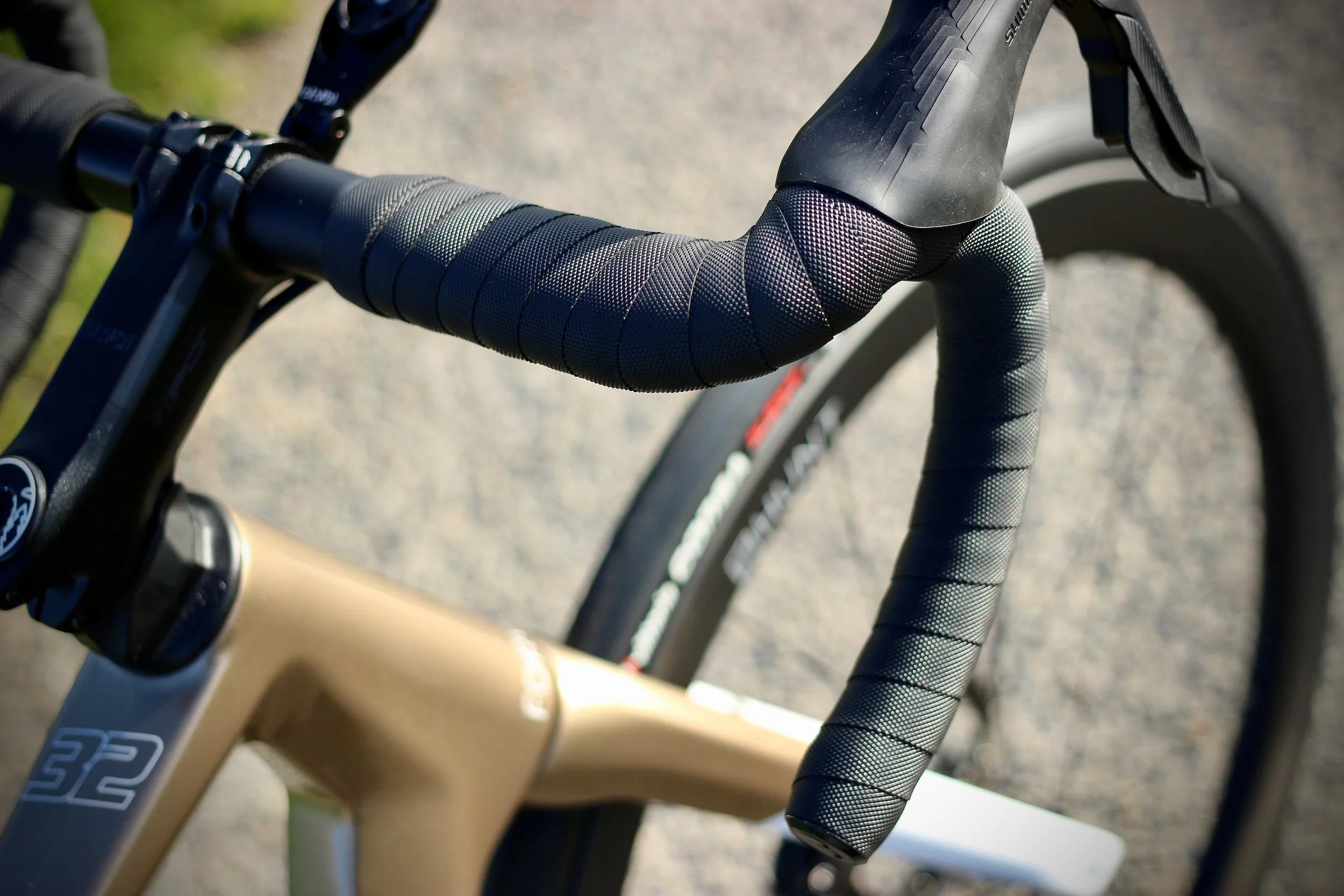

| Bartape | BBB BHT-16 - Gravel Ribbon 3.5mm or BBB BHT-14 2.0mm | BBB BHT-16 - Gravel Ribbon 3.5mm or BBB BHT-14 2.0mm | BBB BHT-16 - Gravel Ribbon 3.5mm or BBB BHT-14 2.0mm |
| Hardware | SS Allen Bolts, Washers and Spring Washers | SS Allen Bolts, Washers and Spring Washers | SS Allen Bolts, Washers and Spring Washers |
| Anti Rattle | Capgo 1m | Capgo 1m | Capgo 1m |
